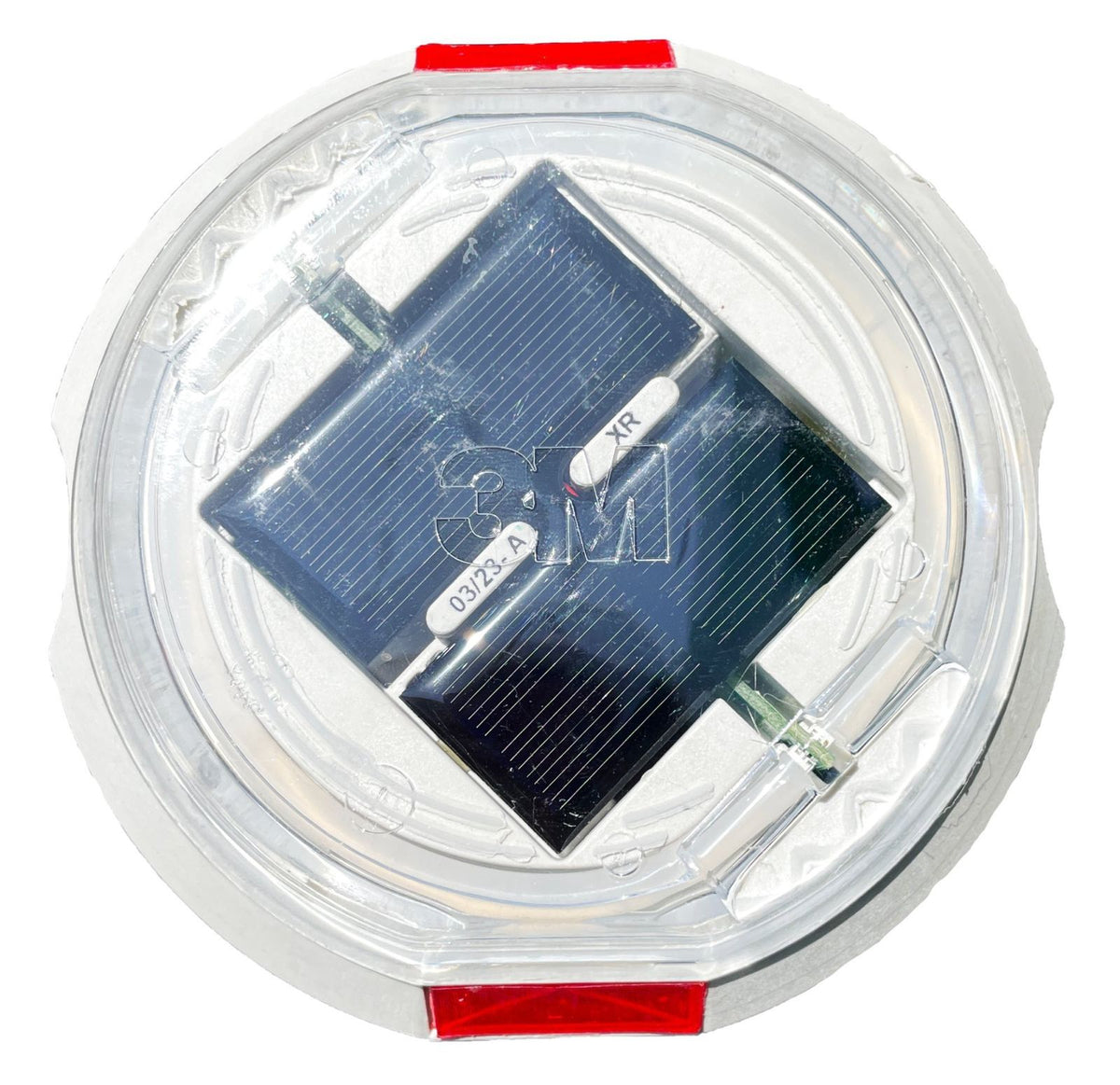

3M Solar Raised Pavement Marker (RPM)

3M Solar Raised Pavement Marker (RPM)

Improve road visibility and traffic safety with the 3M Solar Raised Pavement Marker (RPM), an advanced solar-powered road safety solution designed for highways, industrial roads, intersections, lane markings, curves, and other areas requiring enhanced visibility. Featuring 3M Light Guide Technology, this solar road stud provides 360-degree illumination and a minimum visibility of up to 800 metres, as specified in the supplied product information.

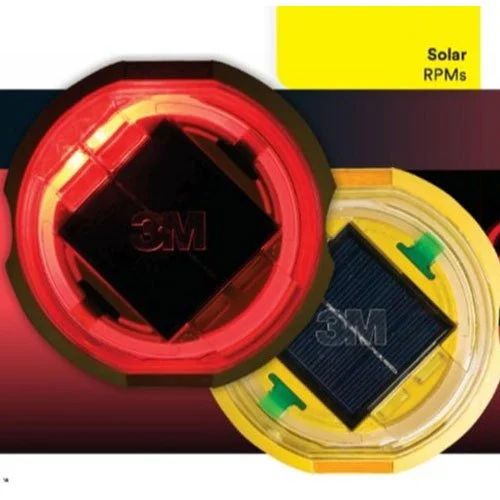

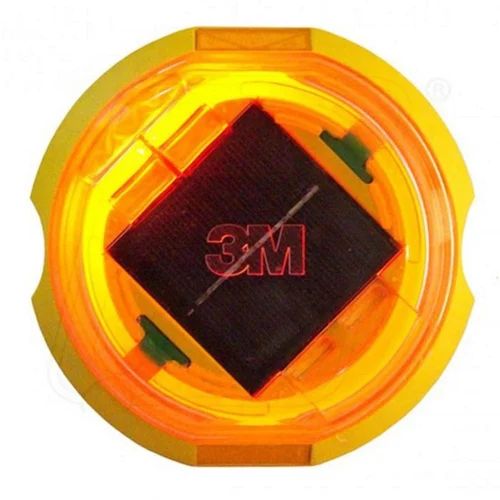

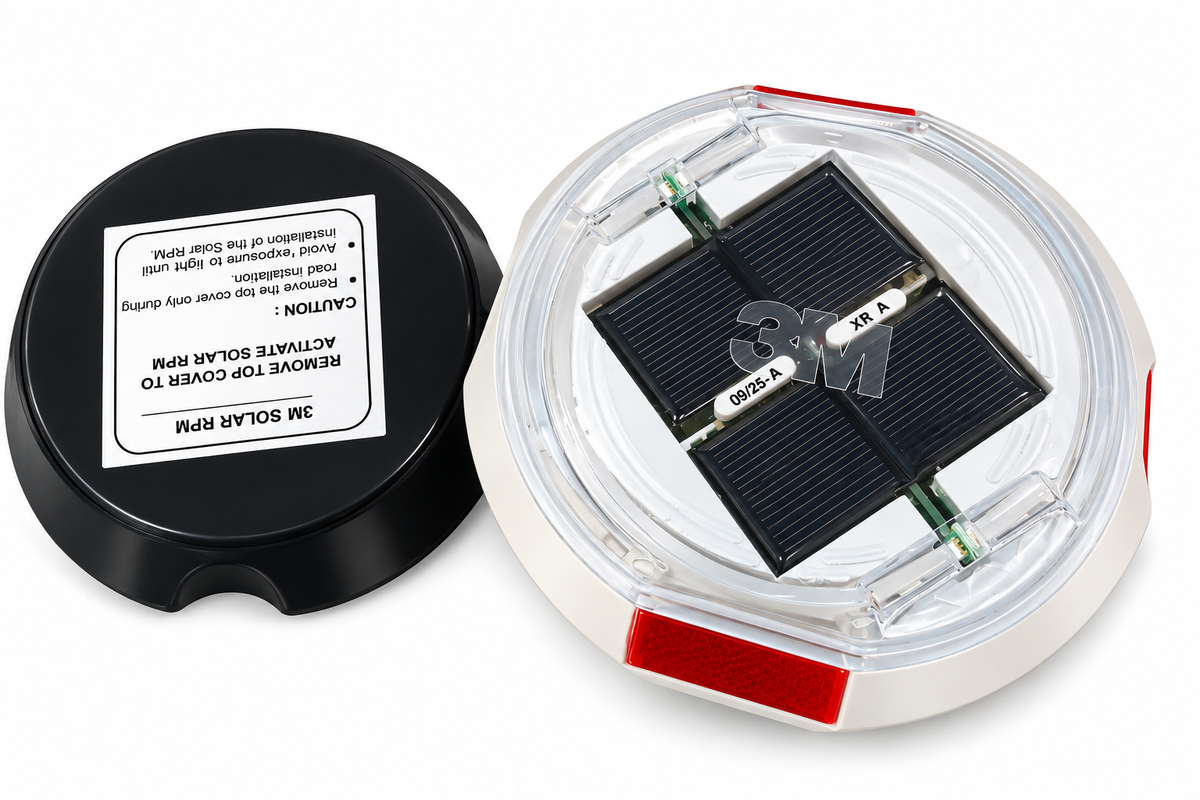

The marker combines a durable ABS body with PVC components, a robust anchoring system, and solar-powered LED technology for improved visibility in both daytime and nighttime conditions. Its white and yellow reflective elements provide passive visibility, while the red and yellow LED options provide active illumination.

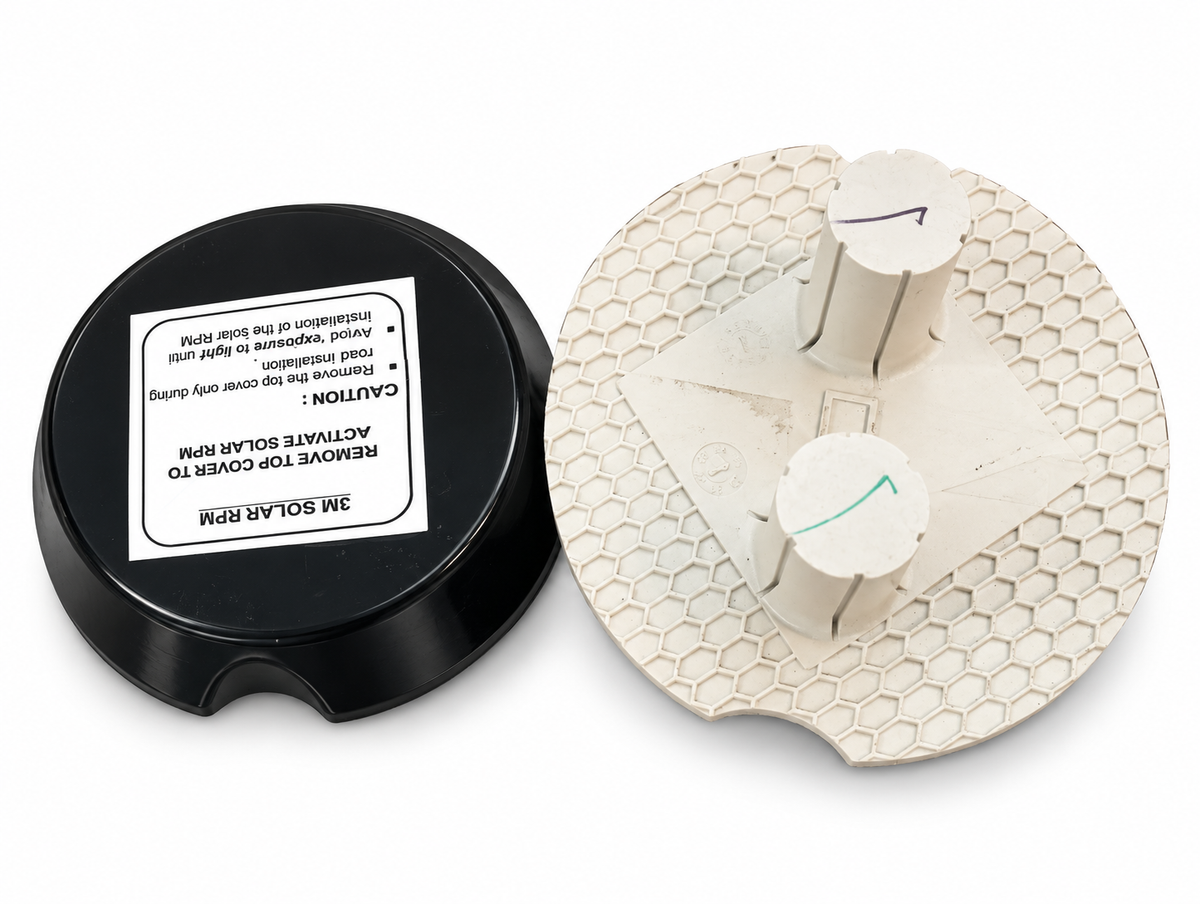

Designed for demanding outdoor applications, the 3M Solar RPM features IP68 water and dust ingress protection, making it suitable for challenging weather conditions, including rain and fog. The double-shank and base design provides improved anchorage to the road surface, while its high compressive strength is designed to withstand regular vehicle traffic.

Key Features

• Brand: 3M
• Product: Solar Raised Pavement Marker (RPM)
• Stud Type: Solar
• Body Material: ABS
• Material: PVC
• Shank Type: With Shank
• Reflector Color: White & Yellow
• LED Color: Red & Yellow
• Size: 120 × 120 × 20 mm
• Stud Height: 25 mm
• Overall Height: 65 ± 2 mm
• Diameter: 136 ± 4 mm
• Shank Length: 40 mm
• Shank Diameter: 25 mm
• Load Capacity: 20 Ton
• Shank Breakage Strength: 820 Kgf
• IP Rating: IP68
• Minimum Visibility: 800 m, as per supplied product information
• Visibility: 360° Light Guide Technology
• Minimum Order Quantity: 50 Pieces

Advanced Solar Road Safety Technology

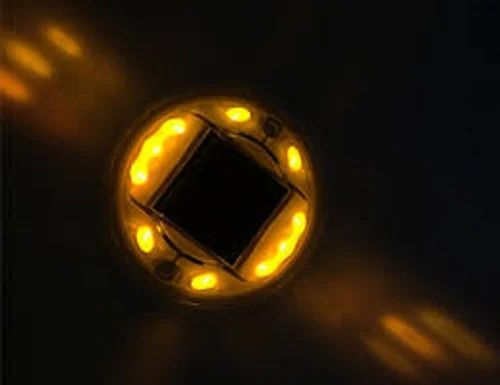

The 3M Solar Raised Pavement Marker uses light guide technology for enhanced visibility from multiple viewing angles. Its solar-powered LED system provides active illumination, while the integrated 3M retro-reflective lens helps maintain visibility in passive mode.

The product information indicates that the marker meets and exceeds applicable MoRTH specifications, including requirements related to compressive strength and visibility. It is also designed to provide clear visibility during foggy, rainy, and low-light conditions.

Applications

Suitable for:

• Highways and expressways
• Industrial roads and premises
• Road intersections and junctions
• Lane and road-edge marking
• Curves and hazardous road sections
• Bridges and flyovers
• Parking and traffic management areas
• Construction and infrastructure projects
• Road safety and traffic guidance applications

Why Choose 3M Solar RPM?

With solar-powered LED illumination, 360-degree visibility, strong road anchorage, IP68 protection, and reflective technology, the 3M Solar Raised Pavement Marker provides an effective solution for improving nighttime road visibility and traffic guidance. Its robust construction makes it suitable for high-traffic areas and demanding outdoor environments.
